Pumps Solutions from SBW

Feed Pumps : They serve to feed a steam generator such as a boiler or a nuclear reactor with a quantity of feed water corresponding to the quantity of steam emitted. Today, all boiler feed pumps are centrifugal pumps. The design of boiler feed pumps regarding power input, material, type of pump and drive is largely governed by the developments which have taken place in power station technology. The trend in fossil-fuelled power stations is towards larger and larger power station units This has led to boiler feed pumps with a drive rating of 30 - 50 MW.

Condensate Removal Pump: LDTN, LDTNA and LDTNB pumps are all vertical cylinder or bag structures. The pump suction and exhaust ports are set on pump cylinder and exhaust seats respectively. The pump’s working parts (including pump shaft, impellers, diversion case and bearings) can be moved out easily in maintenance, without disassembling water suction pipes. Pump suction and exhaust ports can be adjusted to different angles such as 180°and 90°to meet different installation needs.

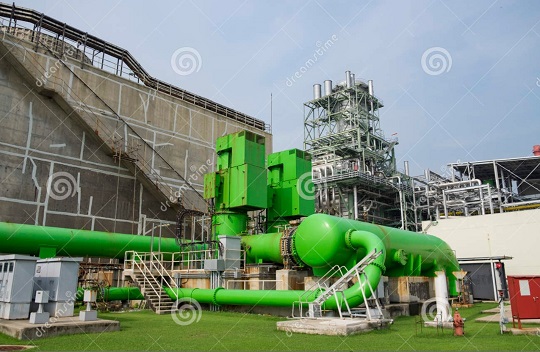

Circulation Pump: HLB, HLBK, HLKS and HLKT vertical diagonal flow pumps are produced in our plants since 1984, mainly used for supply of clear water, rain water, sea water and sewage at a temperature lower than 60℃. The pumps can be used as circulation pumps in power plants, or applied for industrial water supply (in iron and steel plants and wharfs), city water supply system, water exhaust engineering and farmland irrigation and drainage.

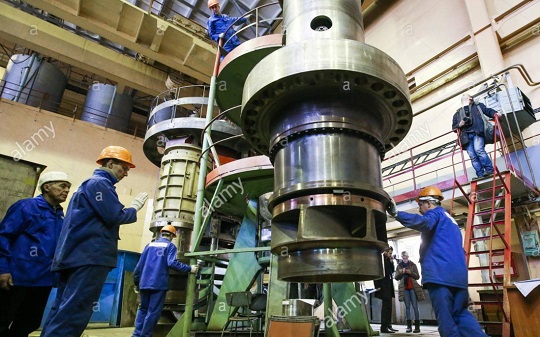

Nuclear power Pump: The important plant water pump is one of the main equipment applied in the important plant water system in pressurized-water reactor nuclear power plants, In conditions of power units normal running or accidental operation, it can convey after heat of the reactor to a final hot well via cooling water, so as to ensure the normal operation and safe shutdown of the reactor.

Petrochemical Industrial Pump : We have many types of this pumps but the most important of them are : AY/AYP pumps which are mainly used to convey petroleum (no solid particles contained), liquefied petroleum gas and other mediums in different industries such as petroleum refining, petrochemical processing, chemistry and other industries. DG/DGJ boiler feeding pump which are used as secondary high-pressure boiler feeding pump and other high-pressure water feeding pump, with temperature of conveyance mediums not exceeding 160℃.

Pump #6:














Compressors Solutions from SBW

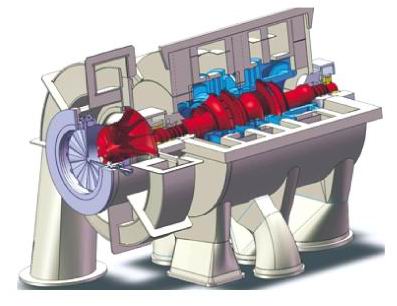

Centrifugal compressor: How this type of compressor works is the drawn Air into the center of a rotating impeller with radial blades and pushed it toward the center by centrifugal force. This radial movement of air results in a pressure rise and the generation of kinetic energy. Before the air is led into the center of the impeller, the kinetic energy is also converted into pressure by passing through a diffuser and volute. Our types of Centrifugal Compressors are: MCL , BCL , PCL , SV single stage compressor , SVK gear-increased centrifugal compressor , DH gear type centrifugal Compressor , MCO Variable speed isothermal Compressor.

Axial Flow compressor : In these compressors, flow of air is in the axial direction. It consists of alternately placed rows of stator blades and rotor blades. The rotor blades are mounted on the rotor while the stator blades are attached to the casing. The conversion of kinetic energy into pressure head i.e., the diffusion action takes place partly over the rotor blades and partly over the stator blades. One row of rotor blades preceded by a row of stator blades is known as a stage of axial flow compressor. A single stage compressor can achieve a pressure ratio of 1.12 to 1.2 only. Therefore, for higher pressure ratio, often several stages of axial flow compressor are necessary. Our types of Axial Flow Compressors are : MA axial flow compressor , MAC axial centrifugal combined compressor

Reciprocating Compressor : A reciprocating compressor or piston compressor is a positive-displacement compressor that uses pistons driven by a crankshaft to deliver gases at high pressure. The intake gas enters the suction manifold, then flows into the compression cylinder where it gets compressed by a piston driven in a reciprocating motion via a crankshaft, and is then discharged. Applications include oil refineries, gas pipelines, chemical plants, natural gas processing plants, air conditioning and refrigeration plants. One specialty application is the blowing of plastic bottles made of polyethylene terephthalate (PET). Our types of Reciprocating Compressors are: V , Z , L , P , 2D , DZ , 4H , 4M , 6M series



Blowers Solutions from SBW



Blower #1:

Blower #2:

Centrifugal Blower:

Ventilators Solutions from SBW



Ventilator #1:

Ventilator #2:

Ventilator #3:
